Metal-Polymer Bearings
PTFE-BASED METAL-POLYMER MATERIALS: DU®, DU-B™, DP4™, DP4-B™, DP31™, DP10™, DP11™
Our metal-backed, PTFE-based (polytetrafluoroethylene) polymer bearing materials have a common structure, consisting of a metal backing bonded to a porous bronze sinter layer. This bronze sinter layer is impregnated and overlaid with the filled PTFE bearing lining. The metal backing provides mechanical strength, while the bronze sinter layer provides a strong mechanical bond between the backing and the bearing lining. This construction promotes dimensional stability and improves thermal conductivity. These polymer bearing linings, being predominantly PTFE, offer exceptionally low friction.
THERMOPLASTIC-BASED METAL-POLYMER MATERIALS: DX®, DX®10, DTS10™, DS™, HI-EX®

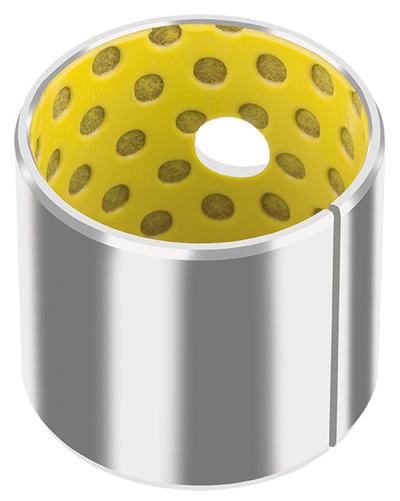

DX®, DS™ and HI-EX® have a similar structure to the PTFE-based materials described above; but with these products, the bearing lining consists of a filled thermoplastic extruded tape. These materials are generally designed to operate with marginal lubrication. DX® and HI-EX® are most commonly provided with a uniform pattern of indents in the bearing surface that act as grease reservoirs.
The incorporation of PTFE filler in DS™ enables this material to operate dry when required. Due to the inherent lower friction of this polymer blend, it is usually supplied without indents. The high-performance engineering polymer found in HI-EX® gives this material excellent temperature and chemical resistance combined with good load capacity and is particularly suited for operation under arduous conditions with oil lubrication.
