The high performance signal converter for all applications
Product News Tuesday, February 10, 2015: KROHNE Pty Ltd

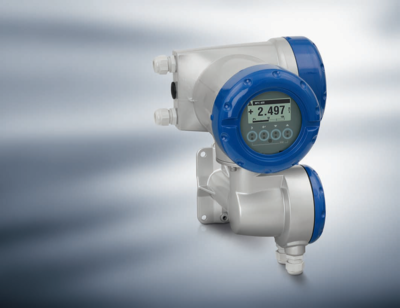

The MFC 400 Coriolis mass flow signal converter will provide the highest perfomance possible across a wide range of applications .For the measurement of liquids or gases,cryogenic to high temperature fluids,single or multi-phase fluids and advanced digital signal processing techniques is used to give stable and accurate measurements of mass flow ,density and temperature. Conforming to e NAMUR standard E 107 for status and error handling, the MFC 400 features enhanced meter diagnostics. This provides extensive self -checking of internal circuits and information regarding the health of the measuring sensor, but just as importantly ,vital infomation about the process and process conditions.
The MFC 400 mass flow signal converter is available in different variants and offers superior perfomace in any conceivable application. From process control in chemistry ,to density and concentration measurements in the food and beverage industry ,to custody transfer filling and transport measurements for oil and gas right down to conveyor systems in the pulp and paper industry.
Coriolis mass flow measuring systems measure the mass and the volume flow,the density and the temperature of liquids and gases. In addition ,the concentration in mixtures and slurries can also be determined. For standard applications the compact housing is mounted directly on the measuring sensor.In the unlikely event of a failure,the electronics can be easily exchanged and reconfigured using backup data set that is stored in the housing .( Signal converter in field housing) The signal converter in the robust field housing is generally used when it is difficult to access the measuring point or when ambient conditions do not allow the use of the compact version.
The MFC 400 coriolis mass flow converter is:
- High perfomance signal converter with multiple output options
- Excellent long-term stability
- Real time clock for logging events
- Optical and mechanical keys for ease of use
